Hello please help me,
How insert insulation hatch in wall drawings?
Thank You.
Insulation hatch.
-
Use wall properties with Items which contain information about hatches (these hatches can be attached to the items in the project data program). In the dialogue box for the drawings you can select settings for hatches and there you select hatches for the wall slices.
-
Sorry, but I can't find dialogue box for the drawings where I can select settings for hatches.
-
Which version of our software do you use?
-
This option we have since version 13 but not with version 10.
In version 10 you have the enter the hatches manually in each drawing. -
Hi Giedrius,
You have to use Section Areas not the horizontal section.

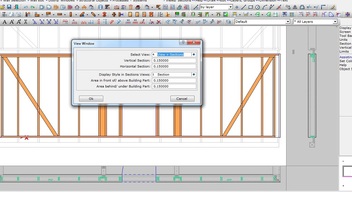

You create them with 9-9. Also make sure you have in 1-7-2 Area behind Building a distance set. -

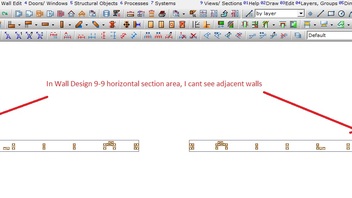

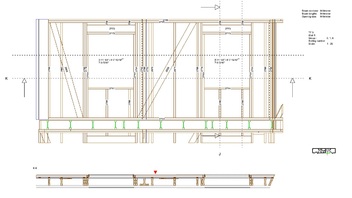

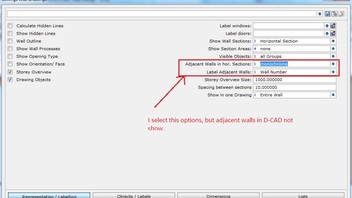

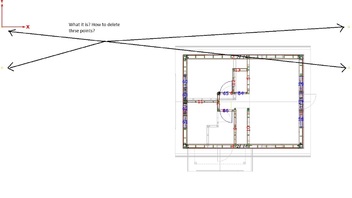

Thank You, but I still not understand. I attached all my way to D-CAD, but adjacent walls still missing.
-
Hi Giedrius,

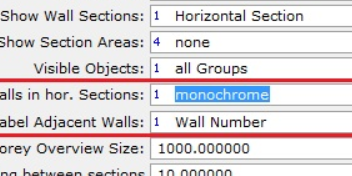

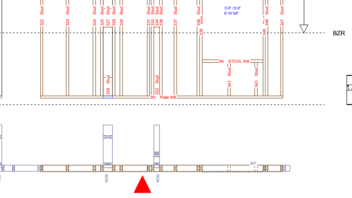

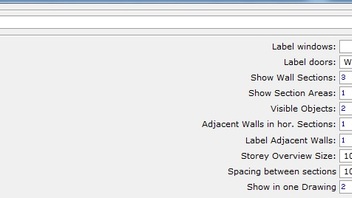

I have attached my wall drawing settings you can use. -
Hello Giedrius,
also be aware that only the posts and beams of the adjacent walls are shown, not the wall volumes.
-
Hello,

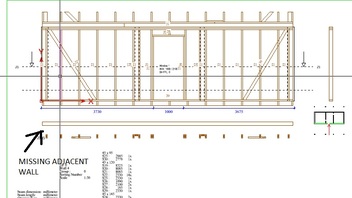

Wil Dancey I used Your settings, but adjacent walls still missingRealy crazy.
