extrude

Kayaker · 11. April 2009

When I did an extrude this beam with a curve in it looks rough. Can anyone explain how to smooth it out? Please see attachment.

Thanks!

Kayaker

Der_Planer · 11. April 2009

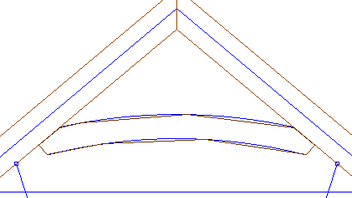

Dicam is not the best tool to convert arcs. When I need smooth extrusion beams, I import only straight lines as assisting geometry. So I can define the smoothness for myself.

Kayaker · 11. April 2009

Hi Der_Planer,

I have made extrudes like this before and had much better results than this one. The segments are not even symmetrical.

Kayaker

Der_Planer · 12. April 2009

Hi Kayaker,

the number of arc segments depends on the diameter, and you cannot define it anywhere. I also had beams that had ugly symmetry, until I made my own symmetrical lines in 2D, and imported them for the extrusion.

Kayaker · 12. April 2009

Hi Der_Planer,

Would you be able to share an example? It would be great to see the final product.

Thanks!
Kayaker

Kayaker · 12. April 2009

Hi Der_Planer,

I tried your method the result is excellent nice and smooth!

Thanks for the help! :wink:

Kayaker
