I would like to add an overhang to my roof at the location shown see attachment. And also remove the OSB from the gable area it appears this roof surface wrapped into the gable area. Can anyone help?
Thanks!
Kayaker
Alter Roof
-
-
It looks like your gable face has a roof definition (created by choosing 'all faces'?). Set it back to 'none' (roof calculation 3-01), then the OSB will disappear.
overhang: in roof calculation, 4-4-1 (push lines).
-
Der_Planer,
Thanks for the guidance I was able to remove the OSB from the gable. Now I'm trying to create the overhang at the location shown on my 1st attachment by doing 4-4-1 move line I receive a message optional function? My second attachment shows a plan view of the roof.
Kayaker
-
If you don't have this option, there are 2 possibilities.
1. keep the roof as it is, and lengthen and copy some beams in Dicam.
2. push all faces as far as you need it for overhang. The lower face will be be too small, so you have only to lengthen the rafters.Best: buy that option.
-
Hi Kayaker,

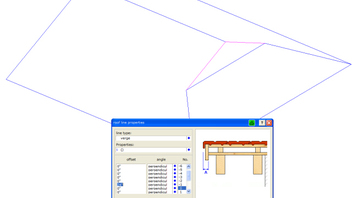

Another option is to use 3-02 and set an overhang on the verge lines.
