Hello,

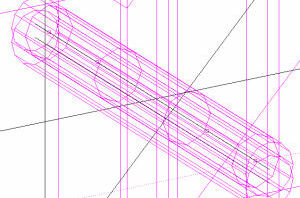

I would like to delete the peg hole process. I was placing braces and a couple of them were incorrectly placed. The brace and it's beam processes have been deleted but the hole remains in the beam(s) and I can't seem to get rid of it!
Danke!
Armin
How Do I Delete Peg Hole Process?
-
-
Hi Armin,
You can delete single processes in D-CAM with the function 3-1-4.
-
... tried, but no luck. I spent a bit of time trying different things. Maybe something in my settings? ](*,)
-
In D-CAM use the command 3-1-1 on the beam with the holes. The drillings should show in the single beam process list. If there is a mortis or tenon with a dollar sign ($) in the list use the "explode" button and now you should see the drilling processes. Use the "delete" button to delete unwanted processes.
If the drillings were originally created with the "Intersecting Volumes" command 2-7-1 you will need to delete the holes with "Tools-Control-Machine Only" 3-1-8.
I hope this works for you.
-
Thanks Jason! Process list worked & discovered many other features along the way. I owe you a 'Stein'!
Armin
