Thanks Jason! Process list worked & discovered many other features along the way. I owe you a 'Stein'!
Armin
Beiträge von pimenthal
-
-
... tried, but no luck. I spent a bit of time trying different things. Maybe something in my settings? ](*,)
-
Hello,
I would like to delete the peg hole process. I was placing braces and a couple of them were incorrectly placed. The brace and it's beam processes have been deleted but the hole remains in the beam(s) and I can't seem to get rid of it!
Danke!
Armin -
As always, Thank-You!
Regards,
Armin -

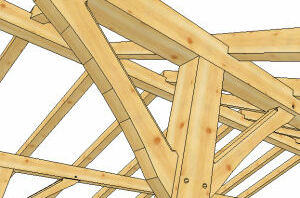

... make one? Would like to finish my Cabin, but forgot how to make a curved brace. Thanks!
Armin -
Hello!

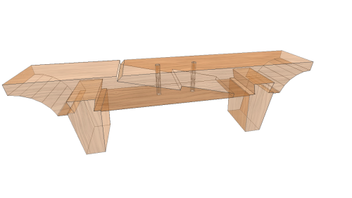

I drew my most recent project out in 2D and built this scarf joint bench with dovetail tenon legs that friction fit though the seat.
I've drawn as much as possible to be able to view all the processes in D-Cam.I would like to edit the scarf joint for my bench drawing, but I can't find the specific tag for it. Is there another way to complete the drawing? I would like to:
*add an angle to the end of the joint as per my project (I already cut the angle on one piece, but can't make the other piece match up) see pic
*add the wedge hole for the scarf
*place the pegs (I made the holes, but can't find pegs)
As Always,
Thanks!![Blockierte Grafik: http://bavariaboy.com/media/blogs/timber%20frame/IMG_0991sml.jpg]
-
You understood perfectly! I did not know about the 'units' (1-7-5) It works now!
Vielen Dank! (my german ist not so gut!)Armin
-
I found a previous post in here with the same issue. The measurements when I draw a measurement line output in imperial according to the setting, but I haven't been able to input the data into the pop up boxes when I draw a line like with the other modules. :cry:
