Making drawing with more than one gorundplan, GF1, GF2...?

Hello.

I didn't know - until too late - that I could change heights of single walls. So to make different heights, I made more than one groundplan GF1, GF2 etc. How stupid! :cry:

So now if I want to make a drawing of ground plan, it is difficult because I can't collect all GF1, GF2, etc at one time, and insert in drawing at one time!??

Thanks! But if I do this I will have to insert first GF1, then GF2 with some reference point, then GF3... That is not so easy.

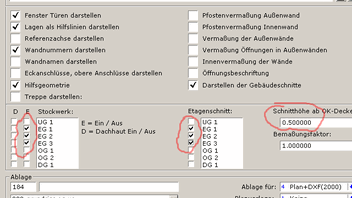

Will these settings that you have marked insert GF1, GF2, etc. at once in the drawing?

Yes - all at once option would be nice!!

It is not possible to change it in the model - put all wall in one ground plan?? I have allready timbers inside the walls.

Zitat

Next time you do the right things at startup

Oh, yes - no doubt!! :lol:

I will try that what you suggest - even I am a beginner, I am a clever beginner... :lol: :lol:

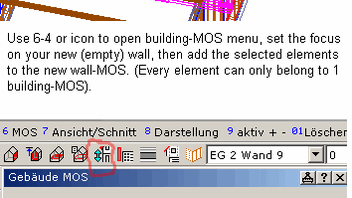

Hello - what do you mean with "... add them to building_MOS of GF1_wall_xx." ??

In your point 2 I think you mean "Goto Dicam, activate all material in GF2_wall_1... (not GF1_wall_1).

And how to have Dicam to show only GF2_wall_1?? All these lines are confusing.

Aah of course - first of all I can deselect all other than GF1 and GF2 walls. And then I can use the plan view.

Hello! Ok, I understand now - it works very well! Thank's!!
