ROOF module elevation question

  • Greetings,


    Recently I have requested a demo version of the Dietrich's software and I started playing with it.
    Now I am facing a problem: I don't know how to set the height (elevation) in the ROOF MODULE.
    For example: I have a 4 studs with 2,10 m height + 12 cm plates. Where can I set that, the roof must start from 2,22 cm ?

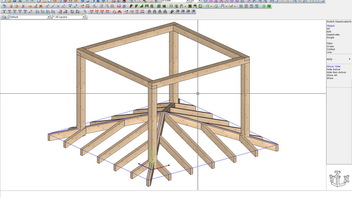

    I attached a screenshot too.
    Thank you for your answers in advance.

  • Hi Zsolex,
    In Roof-calculation 1-2-5 select all Building Sides.

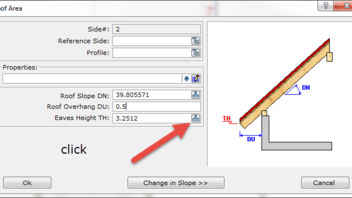

    In this window select:(click see Picture).

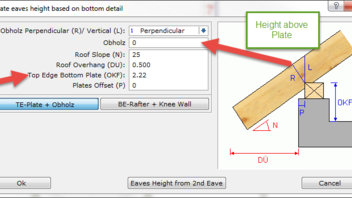

    In the next window choose your plate height (See Picture)
    After you exist your this window the roof gets recalculated. The last thing to do is to go to 1-2-6 Roof Design and recalculate the Rafters with 5-9.
    The Rafters will be moved up.
