Occasionally a single beam drawing will be brought into D-CAD with a very large scale. The beam will sometimes be displayed very small in the corner of the drawing. If you come across this issue please try one of the following:

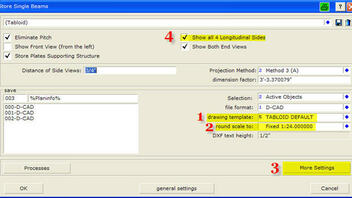

1. Select "none" for drawing template. In D-CAD use 1-2 "Insert Stored Image"
2. Round the scale to a fixed value when creating the drawing or round to a value of something like 8.

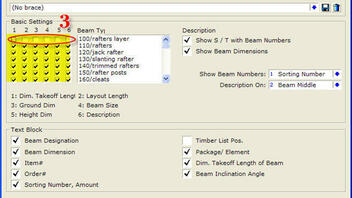

3. Uncheck the predefined dimensions to the corresponding beam type found in "More Settings".
4. Uncheck the "Show all 4 Longitudinal Sides".
5. Select a larger paper size!
