Good day,

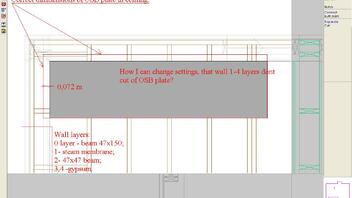

can sameone to explain what I must change in wall or ceiling settings for correct OSB location in ceilling area. Now outside walls 1-4 layers cutting out part of OSB.
Ceilling and outside wall intersection
-
-
Hi Vilmantas,
There are two ways to position the sheathing so the wall does not cut the sheathing.
When I am feeling lazy I simply place the sheathing along the inside edge of the wall so the sheathing will not be cut back by the wall. Then I manually move the sheathing into the correct location with 5-02 in Ceiling Design.
The second option works if the ceiling has been placed flush with the inside wall surface. Then you can move the slice outline with 3-2 in Ceiling Design. Be sure to move the same slice that you are positioning the sheathing in. Now the wall will not cut the sheathing.
Hope this helps!
-
Hi, Jason, you know I did that in first way like you say - the moving plates in manualy on friday.
Thanks!
