Points at ends of lines?

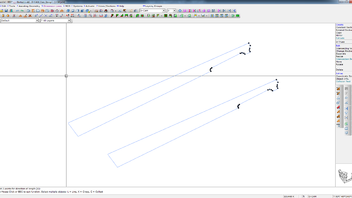

  • When extruding in DCAM (2-5) and using the "Measure" option, dots/points are highlighted at the end and middle of each arc (portion of a curve), which really helps following curves when you don't need to be too specific.


    Is there a way to "see" these points, especially mid-point on the curve, at other times? (Without going to other modules and using the 02-2-3 to create an actual point).

    • Offizieller Beitrag

    At the moment there is no possibilty. As I know these points do not realy exist and are created temporarily in this moment inside this single function.

    Viele Grüße,
    Joachim Neumann (Dietrich's AG) :smiling_face_with_sunglasses:
