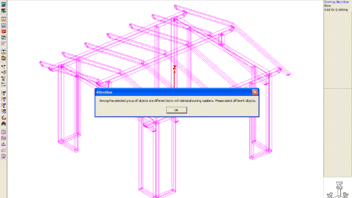

Problems with sorting no

check your stat numbers per layer when you do a new sorting. its some time resets its self.

Hi Vilmantas,

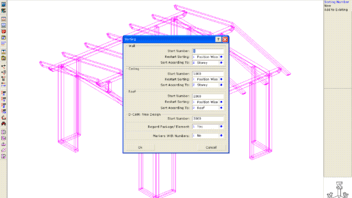

please regard that when you want to make only one machine file, regarding your building elements, you have to
-make sure the difference of the start numbers is big enough (wall 2000, ceiling 4000etc)
-restart sorting is set to "Position wise" for all building elements
-Sort According to ist set to "wall, ceiling area, roof area and truss"

Best regards,

Jens

Hi Vilmantas,

Wall: Set "Sort according to: Wall"
Ceiling: Set "Sort according to:Ceiling area"
Roof: Set "Sort according to: Roof area"

This way, identical beams in different building elements get different numbers.

Alternatively: With your sorting setting above, use "Building part: Regardless" in the machine transfer. Then the info, from which building element (roof surface, wall....) a beam comes will not be transferred to the machine.

Best regards,

Jens Krause
Dietrich's AG
