Ok, I checked and it is 9.03.

Thanks,

Kayaker

Joachim,

I'll try again. I'm running 9.03.

Kayaker

Joachim,

I tried turning on the assisting geometry of the walls, and that didn't work. Do you have any other ideas?

Kayaker

Hi Joachim,

Defining the truss, assisting geometry that I have in my wall module would be helpful with defining the truss. However, when I have to define the truss it's not visible.

Thanks!
Kayaker

I need to see my assisting geometry lines in the truss module for truss layout. I am having trouble with this. Can anyone help? I'm trying to define a truss by (orientation) points, lines, and define the truss outline by polygon.

Thanks

Kayaker

Jim,

I like your idea.

Kayaker

Hi Jim,

Within the program there is "an oak gluelam". What they don't have is a "Douglas fir gluelam".

Kayaker

Jim,

I would like to "maintain the glue lines" when changing the texture set to Douglas fir or Larch. I'm not sure if this is possible.

Kayaker

Is it at all possible to change A laminated timber to look like A laminated Douglas fir ? See attachment.

Thanks

Kayaker

Joachim,

I happen to be in Open GL when the zoom function hung up. Once I exited Open GL It worked properly.

Kayaker

Zoom factor to big. I can't zoom in or out. How do get the zoom in or out to work again?

Regards,

Kayaker

Der_Planer,

Thank you, thank you, thank you, for the good of all concerned. 3-04 worked out set intersection priority to 0. Joachim, thank you for stepping in.

Kayaker

Der_Planer,

Thanks for the reply. Attached is a plan view. I used roof calculation I have separate roofs. I moved my lines to create the overhang. It appears that the competing roof overhangs are creating the problem. Do you have any thoughts on this?

Kayaker

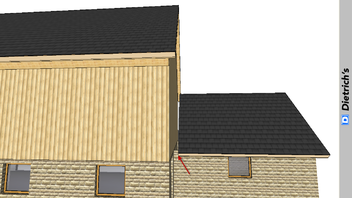

I am having trouble getting the roof to butt up to the side of the building. Can anyone please advise? :roll: See attachment.

Thanks!

Kayaker

Now that we can do dimensioning in D-Cad when in ceiling design it would be nice to be able to turn on axis lines on floor beams. :wink:

Kayaker

Markus!

You're my hero!

Thanks!

Kayaker

Can anyone guide me to the SmartTag that will create the attached profile?

Thanks!

Kayaker

When editing a line there is a work around to get the layer to appear in the general area which will be fixed in the next release. In addition, I also see no selection by layer when editing the line weight. See attachment.

Kayaker

In order to bring in the DNA hidden layer you had me "Sketch an object in D-Cam in an isometric view and bring it into 2D and you will have a "dna hidden" layer."

My question is this when I start a new project will I have to do the same. Alternatively, do I save this DNA hidden layer as a new layer combination .

Jason,

That worked. Can you explain what I need to do, so I don't have to go through the same procedure next time?

Thanks!

Kayaker
